GaN Chargers: What the Technology Changes and Where the Trade-Offs Hide

Gallium nitride is not a marketing layer over an ordinary charger. It changes the switching behaviour, and therefore the size, the heat and the interference profile of the whole design — which is why the same wattage can be a pocket brick or a noisy one.

What GaN actually changes

GaN switches faster and loses less energy doing it, so the same wattage fits in less copper and less heatsink. That is the entire commercial argument.

The practical consequences run further than size. A smaller magnetic and a smaller thermal solution mean the charger can be built in shapes that were previously impossible, which is what enabled the 30W pocket brick and the 140W desk brick. It also moves the engineering difficulty: with less margin, thermal design and electromagnetic compatibility stop being afterthoughts and start deciding whether the product ships. If you understand the trade-offs, the specification conversation becomes about which trade-off you are willing to pay for.

• What is a GaN charger and why is it better — the plain-language starting point.
• GaN versus silicon explained.
• What a GaN charger is — the 2026 explanation.
• Is a GaN charger better than a regular one — a full comparison.
• GaN versus traditional charger — how to choose.
• SiC versus GaN — when silicon carbide actually makes sense.
• The ultimate guide to GaN chargers.

The trade-offs the smaller package creates

Every millimetre saved is paid for in heat, noise or interference. These are the three places a cheap GaN design shows its cost.

Thermal design stops being passive when the surface area shrinks, which is why conduction paths and enclosure materials become specification items rather than details. Switching faster also produces more high-frequency noise, and controlling it costs components and board space. Coil whine and inrush behaviour are the audible and electrical symptoms of the same compression, and both are fixable — but only if they are designed for rather than discovered in the field.

• GaN charger power density — the trade-offs behind smaller bricks.
• Charger thermal design — conduction, convection and materials.
• EMI in GaN chargers — why compact power creates interference.
• Charger coil whine — what causes the noise and how to reduce it.
• Charger surge and inrush current — why bricks trip breakers.
• GaN charger lifespan — what aging tests actually verify.
• GaN charger safety issues and solutions.

Choosing a wattage tier

Pick the tier from the device list, not from the largest number on the shelf. The tiers have distinct jobs.

30W to 45W covers phones and small tablets. 65W is the workhorse for ultrabooks and remains the volume tier. 100W covers full-size laptops and multi-device desks, and 140W to 240W exists for premium and workstation machines. Above 100W the practical constraints shift to cables, EPR negotiation and wall-circuit limits, so the higher tier is a product decision as much as a power one.

• Phone charger size evolution — from 5W bricks to a pocket-sized 33W.
• 65W GaN charger — the workhorse tier.
• Best 65W GaN charger, and the overall best GaN charger.
• Wecent’s 65W GaN charger — features and benefits.
• Best 100W GaN USB-C chargers, and which 100W GaN charger to buy on Amazon.
• 240W GaN chargers — what they power and who needs them.
• Why choose a 240W charger.

Port configuration: the decision that outlives the wattage

Port count and split behaviour decide whether a charger is pleasant to live with. A 140W brick that divides badly is worse than two 65W bricks.

Two or three ports with a sensible split map covers most buyers. Four and above only helps if the split behaviour is documented, because the total is shared and the allocation policy decides which device gets throttled. Configuration choices — 3C versus 2C1A, foldable versus fixed plug, angled versus straight — are what differentiate two products built on the same internal platform, which is why they are worth deciding deliberately rather than copying a competitor.

• USB-C GaN charger — the foundation of a charging line.
• The best multi-port GaN charger for simultaneous charging.
• How 140W multi-port GaN replaces three 45W bricks.
• Dual-port GaN charger — picking the right split.
• 3C versus 2C1A GaN chargers — which configuration to source.
• GaN wall chargers — compact and powerful.

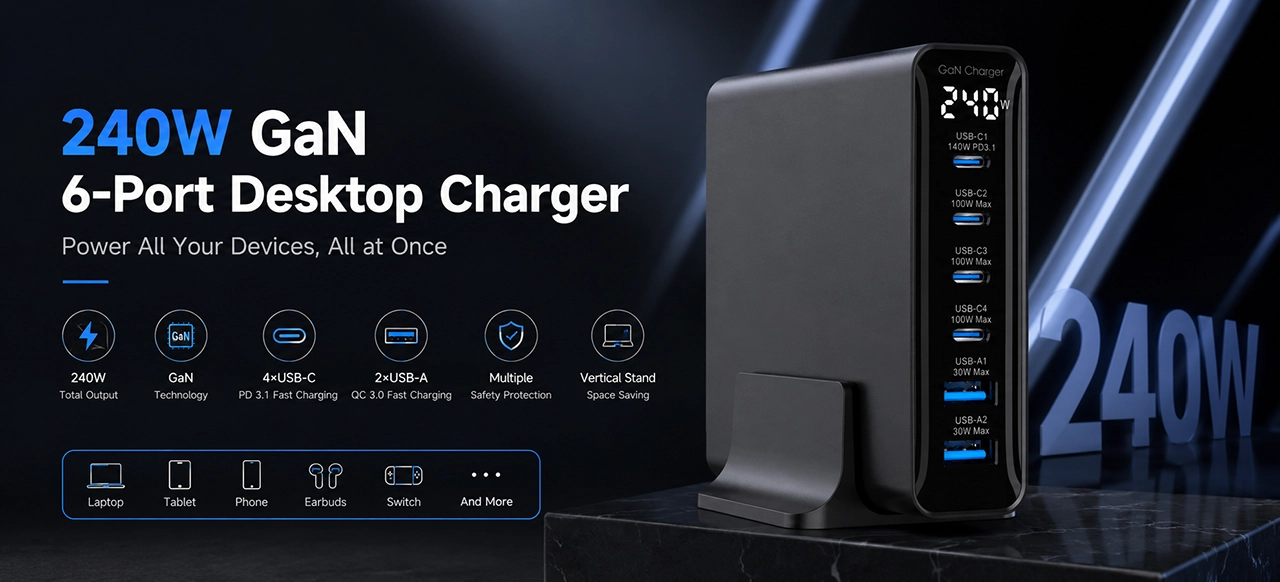

• The WEG series, model WEG240 — a worked product example.

Durability, portability and the scenarios GaN unlocked

GaN made the travel brick credible and the handheld-console charger normal. The new scenarios are the commercial payoff.

Once the package is small enough, the product can be designed for the bag rather than the desk: ruggedised for drops and vibration, foldable for packing, and small enough to be carried without a thought. Gaming handhelds are the clearest example of a device class that only got a proper charger after GaN made the power density possible. Brands that design for the scenario rather than for the wattage end up with a product that is easier to sell.

• How a rugged GaN charger survives drops and vibration.
• Best GaN chargers for Nintendo Switch.
• GaN fast chargers — speed and efficiency.
• Why USB-C GaN chargers are the future.
• What makes GaN chargers the future.
• What are the types of GaN chargers.
• GaN charger safety issues — the follow-up set of solutions.

FAQs

Is a GaN charger actually better than a silicon one?

For the same wattage, yes in most practical terms: smaller, lighter and usually cooler, because the switching losses are lower and the thermal solution can be smaller. The advantage is largest above 65W. At very low wattages the difference is mostly size, and a well-built silicon charger remains perfectly acceptable.

Does GaN shorten a battery’s life or damage a device?

No. GaN changes the charger’s internal switching, not the output protocol. The device still negotiates the voltage and current it wants over USB-C PD, so a certified GaN charger behaves like any other compliant supply at the port.

Why do some GaN chargers get hot or make a noise?

Because the package is smaller relative to the power it handles, and because faster switching creates high-frequency noise. Heat is managed through conduction paths and enclosure materials, and audible coil whine is a mechanical resonance that a good design suppresses. Both are solvable problems, not inherent defects.

Is SiC better than GaN for chargers?

Silicon carbide is better suited to higher voltages and higher power, so it appears in industrial and EV applications rather than in a phone charger. For the 30W to 240W range of consumer chargers, GaN is the more cost-effective choice.

What wattage GaN charger should I buy?

Match it to the heaviest device you will charge: 30W to 45W for phones, 65W for ultrabooks, 100W for full-size laptops and multi-device desks, and 140W to 240W only if you genuinely run premium or workstation hardware.
